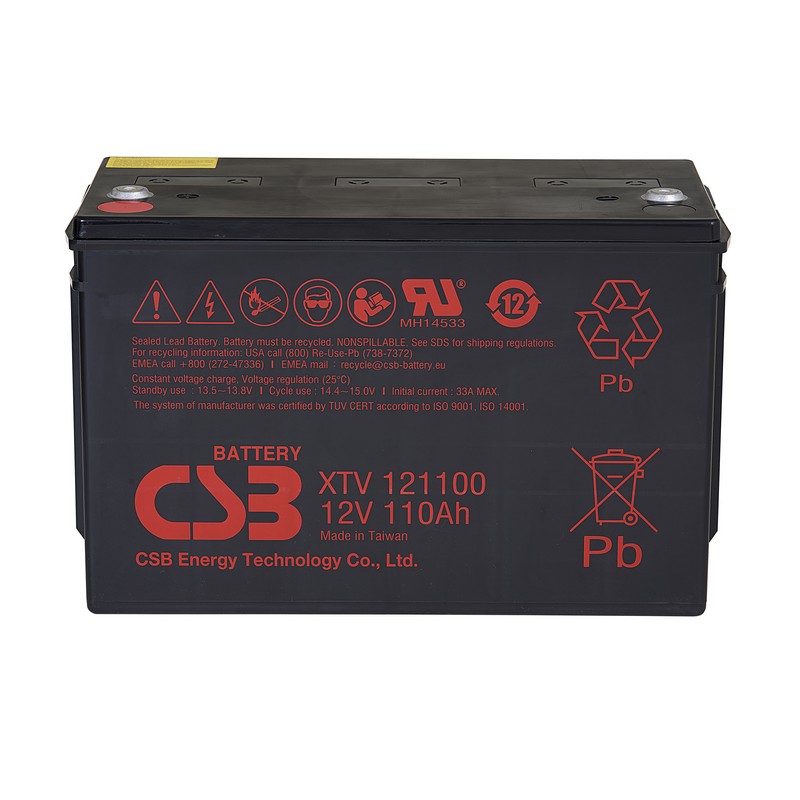

CSB Lead Acid Battery XTV121100 12V 110Ah
XTV121100, 12V 110Ah specially designed for extreme temperatures (-20 to 50 ℃). Innovative Valve Regulated Lead-Acid (VRLA) technology enables a 12-year design life in standby use, or more than 260 cycles at 100% discharge, highly efficient, maintenance free, leakproof, useable in any orientation and ISO/UL recognized.
Extreme energy density, small footprint, Innovative plate structure greatly increases energy/density ratios. Proprietary electrolyte additives. Low self-discharge. Ideal use in Lightings Systems, Medical equipment, Renewable Energy, Telecomunications, Transmitters, UPS and more
XTV-series
XTV-series batteries are specially designed for extreme temperatures (-20 to 50 ℃). Innovative Valve Regulated Lead-Acid (VRLA) technology enables a 12-year design life in standby use, or more than 260 cycles at 100% discharge.All CSB batteries are rechargeable, highly efficient, maintenance free, leakproof, useable in any orientation and ISO/UL recognized.
- Designed for extreme temperatures (-20 to 50 ℃).
- Extreme energy density, small footprint, Innovative plate structure greatly increases energy/density ratios.
- New paste formula increases active surface area.
- Proprietary electrolyte additives.
- Thermally bonded casing.
- Flame-arresting vents.
- Highly durable safety valve.
- Reduced internal resistance for superior performance.
- Uniform plate formation for consistent capacity.
- No-spill design.
- Useable in any orientation.
- Maintenance free. Low self-discharge.
Long service life
- Lead-Calcium cast grid design provides longer shelf and service life.
Reliability
- CSB-manufactured batteries are 100% 2 cycles tested by CCDS system.
- CSB-manufactured batteries are UL-recognized components under
- UL 924 and UL 1989. CSB file number MH14533.
- ISO9001 and ISO14001 certified.
| Battery brand | CSB |
|---|---|
| Series | XTV |
| Type | VRLA Battery |
| Voltage | 12V |
| Amperage | 110 Ah |
| Cells | 6 |
| Chemistry | Pb |
| Technology | Rechargeable |
| Maximum Discharge Current | 800A (5sec) |
| Approximate Internal Resistance | 3.4mΩ |
| Self Discharge | CSB Batteries can be stored for more than 6 months at 25oC. Please charge batteries before using. For higher temperatures the time interval will be shorter. |
| Terminal | I2-Thread lead alloy recessed terminal to accept M6/Μ8 bolt |
| Applications | UPS & Backup Power, Emergency Lighting & Exit Signs, Medical Equipment, Telecom & IT, Solar & Renewable Energy Backup |
| Container Material | Polypropylene (UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request. |
| Certification | C.E mark No needed, D.O.T, I.A.T.A, ISO14001, ISO9001, RUMH14533, UL1989, UL924, Approved for Air Cargo transportation |
| Manufacture Quality | Reinforced, Made by pure lead, High performance, Maintanance free |
| Dimensions L x W x H | L343±2.5 X W170±2 X H213.9±2(Overall H217±2) mm |
| Warranty | 2 Years |
| Weight | 34.2Kg |
CSB LEAD ACID BATTERY XTV121100 SPECS
